Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC

Name: Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC
Brand: Acrel
Price: 1 USD

Brand Name : Acrel

Model Number : AMC16Z-ZA

Certification : CE; IEC; LVD

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Delivery Time : 3-5 days

Packaging Details : carton package

Accuracy Class : 0.5%

Monitoring : Dual Independent AC Incoming Circuits 3-phase (For Data Center)

Communicaiton : RS485 (MODBUS-RTU)

Rated Voltage : 220~264Vac L-N

Rated Current : 1(6)A AC (via CTs)

Contact Now

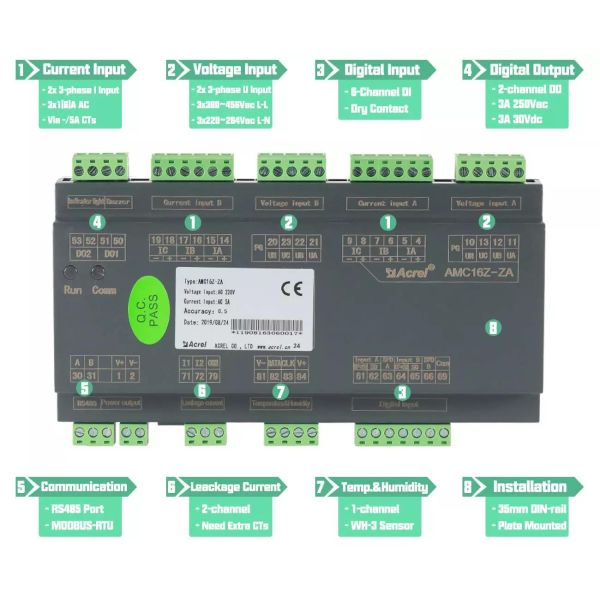

Product Features

Dual AC Incoming Circuits Monitoring

● A+B Dual independent AC Circuits Monitoring

● Full Electrical Parameters Monitoring

● Power Quality Analyzing

Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC

Multiple Extra Function

● 6-channel DI (digital input)

● 2-channel DO (digital output)

● Temperature&Humidity Monitoring

● Leakage Current Monitoring

Product Parameters

Parameter	Description&Value
Voltage Input	Rated Voltage	3x220~264Vac L-N
Voltage Input	Reference Frequency	45~65Hz
Current Input	Rated Current	3x1(6)A AC (via CTs)
Power Supply	Source from	Voltage Input (Voltage signal input for both measurement and power supply)
Installation	DIN-rail	35mm standard DIN-rail Installation
Phase Wiring	3P4W	3-phase 4-wire
Safety	Insulation	All terminals and the insulation resistance between the conductive pieces not less than 100MΩ
Safety	Withstand voltage	A-way voltage and current signal, B-way voltage and current signal, switch output and other ports should meet AC2kV 1min in pairs, the switch input and other ports should meet ac0.5kv 1mim, leakage current should be less than 2mA, no breakdown or flashover

Application

Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC

Wiring and details

Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC

Dimension

Contact us

Acrel Branch Multi Channel Circuit Energy Meter RS485 Dual Independent AC
